630A European Electric Cable Accessories Screened Front Separable Connector

Name: 630A European Electric Cable Accessories Screened Front Separable Connector
Brand: United electrical
Price: 1 USD

Brand Name : United electrical

Model Number : HZ-DL

Certification : ISO9001

Place of Origin : Wuhan

MOQ : 100pcs

Price : Price negotiable

Payment Terms : TT / LC at sight

Supply Ability : 10000 pcs / month

Delivery Time : 20 work days

Packaging Details : Carton with wrapping film and pallet

Conductor Material : Cu or Al

Insulation Material : Rubber

Jacket : Rubber

Number of Conductor : Single-Core/3-Core

Application : Up to 24kv

Separable Connecter applied for : Cable Distribution Box, Ring Network

Contact Now

630A European Electric Cable Accessories Screened Front Separable Connector

Application

It is applied for Cable Distribution Box, Ring Network Cabinet, C-GIS and Switchgear Board, connect the bushings of equipment directly for connection and insulation as inlet-outlet line, is all-insulated, all-sealed, all-screened connector.
It can balance the electric-field intensity preferably, good electrical performance, small space, special structure design.

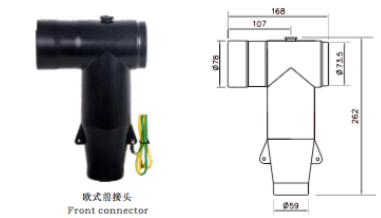

Product Dimensions

15kV, for 25-630mm2
24kV, for 35-630mm2

Product Parameters

Voltage Class	10kV	20KV
Rated Voltage	15kV	24kV
Rated Current	630A	630A
AC Withstand Voltage, 1min	42kV	65kV
DC Withstand Voltage, 5mins	52kV	78kV
Lighting Impulse Withstand Voltage	95kV	125kV
Min. Corona Onset Voltage	11kV	19kV
Thermal Short-circuit Current	22.8kA/2s	24kA/2s
Dynamic Short-circuit Current	80.8kA	84kA
Partial Discharge	≤10pC	≤10pC
